A VRF (Variable Refrigerant Flow) air conditioner — also called a VRV or “multi-split” system — connects one outdoor unit to two or more indoor units through a single refrigerant circuit. Each indoor unit is controlled independently, so hotels, offices and apartments only cool the rooms that are occupied, cutting energy costs significantly compared to fixed-capacity systems.
We supply DC inverter VRF systems with single-module capacities from 25.2 kW to 90 kW that can be combined into much larger networks. T3-condition compressors are rated at 46 °C ambient (ISO 5151) and engineered for continuous operation up to 52 °C for Gulf countries, while EVI versions operate reliably in extreme cold climates.
- Single modules 25.2–90 kW, combinable for medium and large projects
- DC inverter scroll compressors (Hitachi and other premium brands)
- T1 / T3 climate versions — engineered for Saudi Arabia, UAE, Qatar and other high-ambient markets
- Full range of indoor units: 4-way cassette, concealed duct, wall-mounted, floor-ceiling
- 50 Hz and 60 Hz power supply options
- Intelligent central control with individual room management
- SASO / SABER & ESMA certification support for GCC imports
Models in This Range

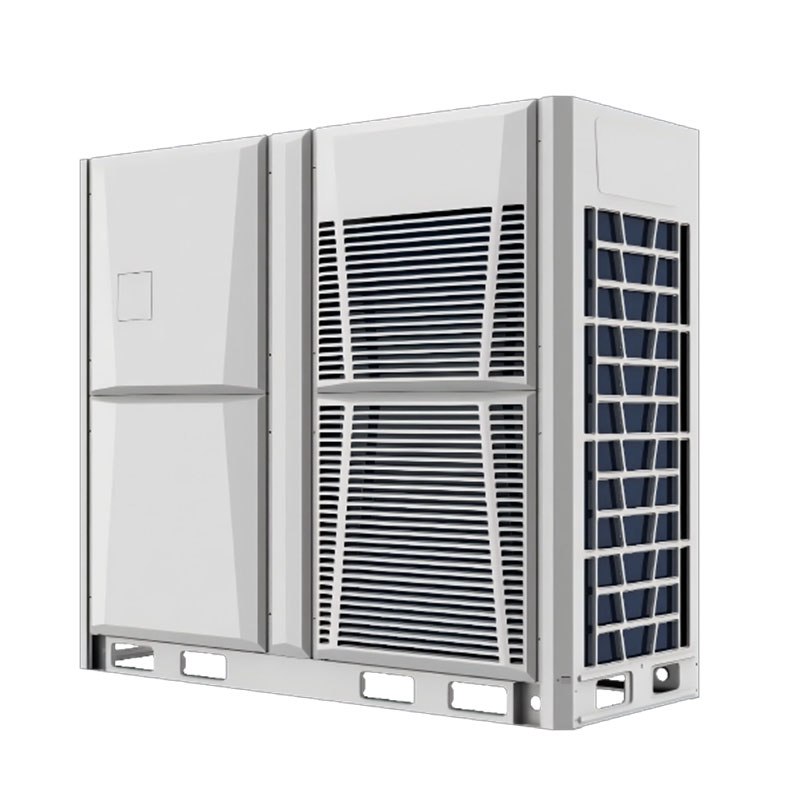

GCHV VRF System
DC inverter VRF outdoor units with Hitachi scroll compressors, 25.2–90 kW modules, T1/T3 condition for high-ambient countries, R410A.
View product

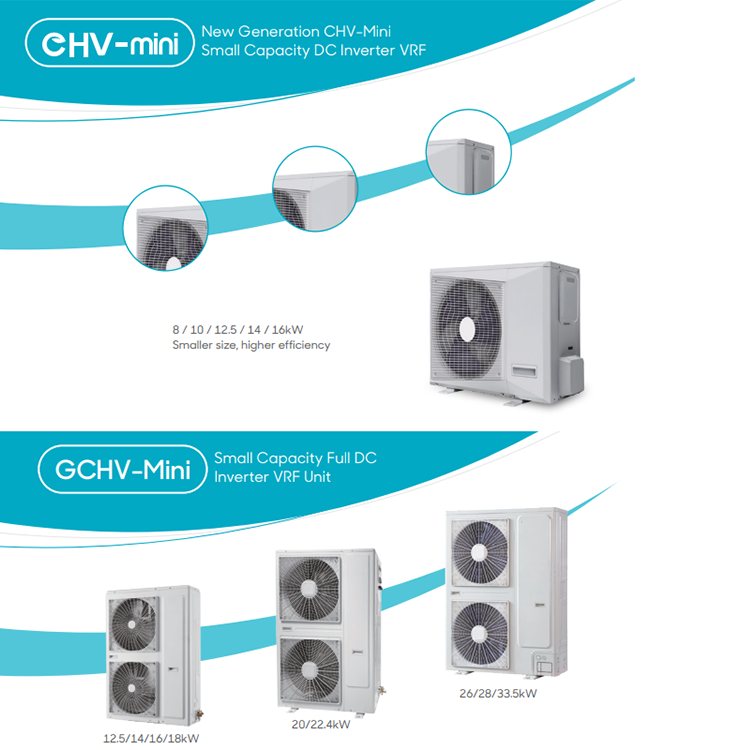

Mini VRF System
Compact single-fan mini VRF outdoor units for villas, shops and small offices — slim footprint, 220 V options, connects multiple…
View product
VRF Indoor Units
Full lineup of VRF indoor units: 4-way cassettes, low/medium/high static concealed duct units, wall-mounted and floor-ceiling types.
View productModel Range Quick Reference
| Series | Capacity range (kW / Btu/h) | Power supply (V/Ph/Hz) | T3 high-ambient | Key spec |
|---|---|---|---|---|
| GCHV VRF outdoor modules (CHV PRO) | 25.2–90 kW (86,000–307,100 Btu/h) | 380-415/3N/50 · 60 Hz version (HYR1): 380-415/3N/60 | Yes — T3 rated at 46 °C DB | EER up to 4.75 W/W |
| Mini VRF, single phase | 8–16 kW (27,300–54,600 Btu/h) | 220-240/1N/50 | — | Sound level ≤54–57 dB(A) |
| Side-discharge VRF, 3 phase | 12.5–33.5 kW (42,000–114,300 Btu/h) | 380-415/3N/50 | T3 rating defined (46 °C DB) | EER 3.32–3.70 W/W |
| VRF indoor units (10 types) | 2.2–28 kW | 220-240/1N/50 | — | Sound pressure from 21 dB(A) |
Specifications verified: July 2026 — factory datasheets
CHV PRO modules reach EER 4.75 W/W and COP 5.50 W/W at the 8 HP size, with total piping up to 1,000 m and a 110 m outdoor-to-indoor height difference. T3-rated modules keep roughly 88% of T1 cooling capacity at 46 °C DB (8 HP: 25.2 kW T1 / 22.2 kW T3). The CHV-Pro series obtained Eurovent certification in 2020 per the product catalogue — view certificates.
FAQ — VRF Systems
What is the maximum piping length of your VRF system?
CHV PRO outdoor modules support up to 1,000 m of total piping per system, with 200 m actual length (240 m equivalent) to the farthest indoor unit and up to 110 m of height difference between outdoor and indoor units — enough headroom for most high-rise and campus layouts.
Do you offer T3 versions for Gulf climates?
Yes. T3 modules carry dual T1/T3 ratings — the 8 HP unit delivers 25.2 kW at T1 (35 °C) and 22.2 kW at T3 (46 °C DB). Cooling operates from -5 °C to 55 °C ambient, customizable to -10 °C, and the cooling-only version runs down to -15 °C.
What indoor-to-outdoor connection ratio is allowed?
Indoor units can be connected at 50% to 130% of outdoor module capacity. Sizing near 100% preserves rated output in every room, while diversity up to 130% suits hotels and offices where rooms rarely peak at the same time.
Are 60 Hz versions available?
Yes. The 60 Hz outdoor modules use the HYR1 designation with a 380-415 V/3N/60 Hz power supply, and the T3 catalogue includes full 60 Hz data pages with T1 cooling EER up to 12.65 (Btu/h)/W. Tell us your grid frequency and voltage and we will confirm the matching model codes.
Need help selecting?
Send your load list or floor plan — free engineering selection within 24 hours.
