One outdoor unit, many rooms — intelligent central cooling for hotels, offices and residential buildings.
- 25.2–90 kW single modules, combinable into larger systems
- Hitachi DC inverter scroll compressors
- T3 version rated at 46 °C ambient, engineered for continuous 52 °C operation — Gulf specification
- 380–415 V / 3N~ / 50 Hz power supply (60 Hz version available)
- R410A refrigerant · flexible piping up to long runs
Certified: SASO · ESMA · MEW · EUROVENT · SGS · CE — view certificates
Overview

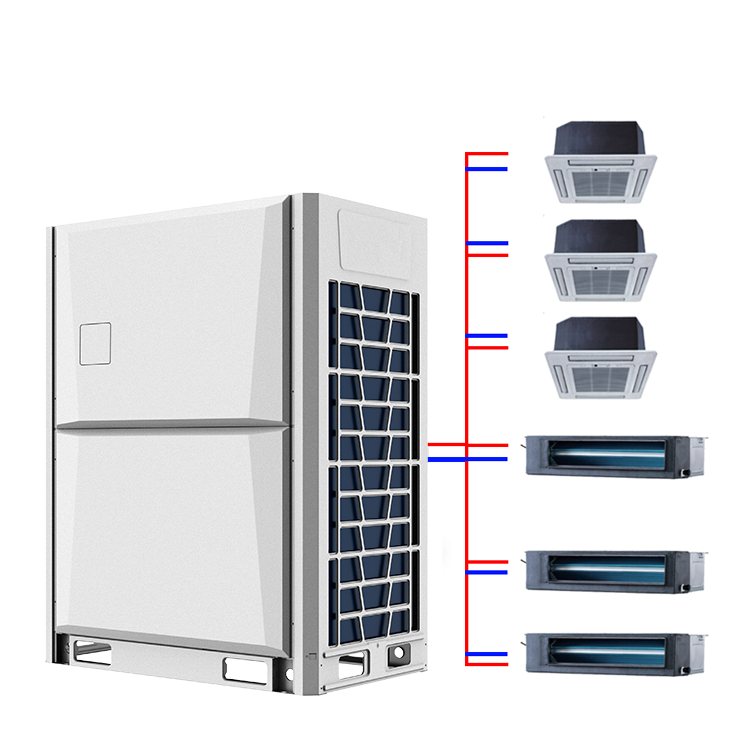

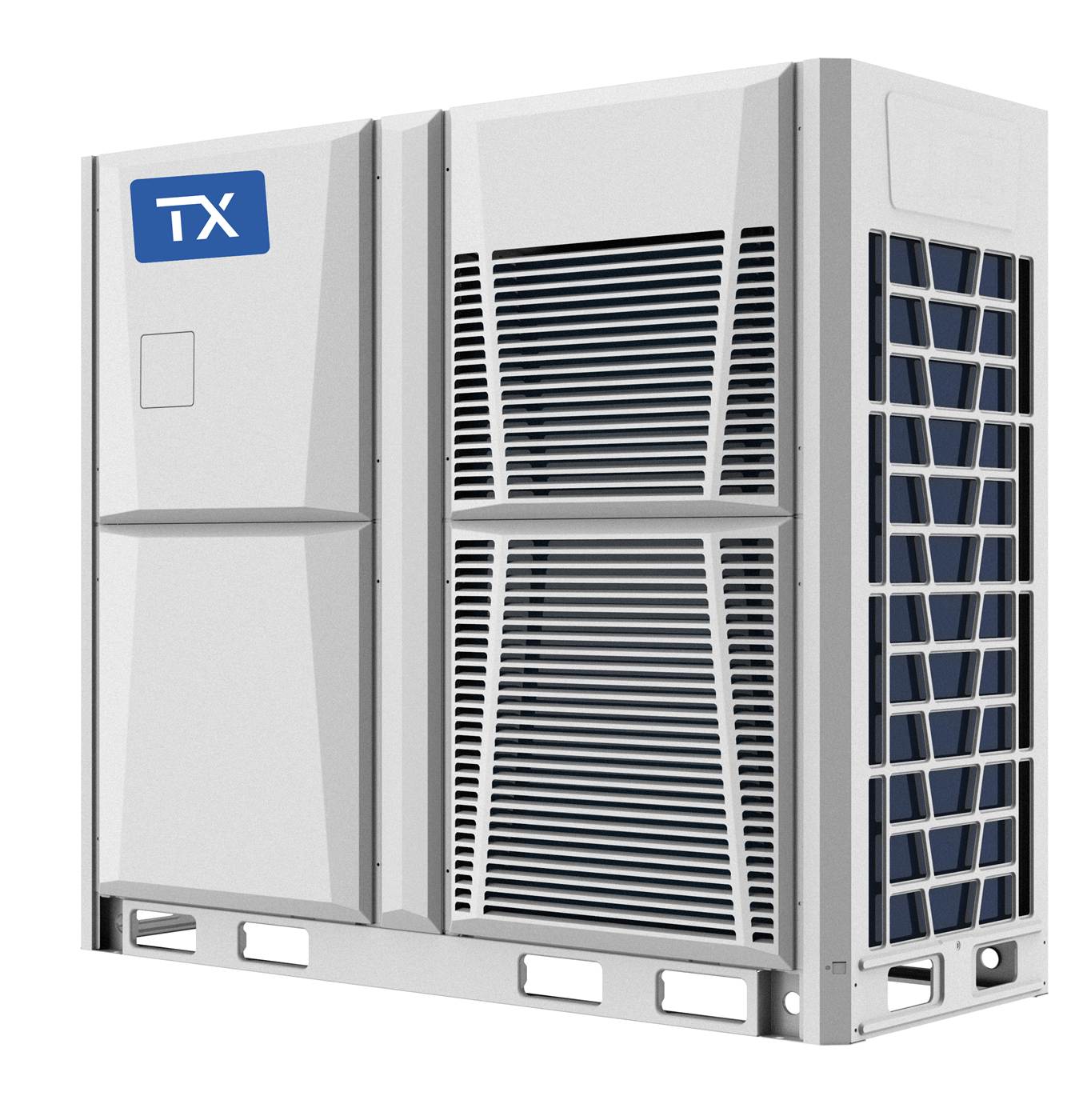

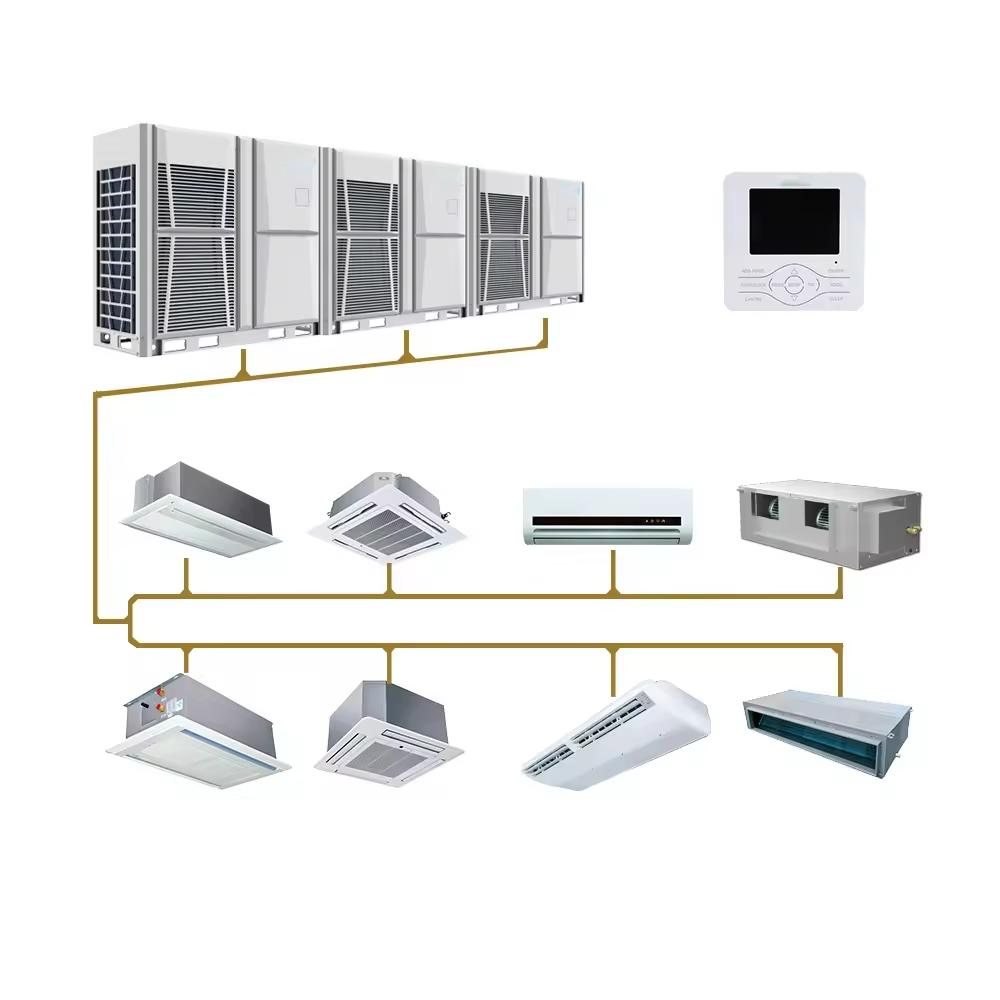

The GCHV VRF series is a commercial multi-split central air conditioning system: one air-cooled outdoor unit drives multiple evaporative indoor units through intelligent refrigerant flow control. Individual unit capacity runs from 25.2 kW to 90 kW, and modules combine into much larger systems for medium and large projects.
Compressors are DC inverter scroll units from Hitachi, with T1 and T3 condition versions to meet both normal and hot-climate countries such as Saudi Arabia and Qatar, plus EVI technology for ultra-low-temperature regions like Canada and Russia.
Total piping can reach 1,000 m, with 200 m actual (240 m equivalent) to the farthest indoor unit and up to 110 m of outdoor-to-indoor height difference. Cooling operates from -5 °C to 55 °C ambient (customizable to -10 °C; the cooling-only version works down to -15 °C), and the EVI heat pump heats down to -30 °C. At T3 conditions (46 °C DB) the 8 HP module still delivers 22.2 kW of its 25.2 kW T1 rating.
For smaller buildings, the single-phase Mini VRF series covers 8–16 kW, and the VRF indoor unit range spans 2.2–28 kW across ten types.
Technical Specifications
| Model | GCHV-E252W/HZR1-DK01 | GCHV-E335W/HZR1-DK01 | GCHV-E450W/HZR1-DM01 | GCHV-E560W/HZR1-DM01 | GCHV-E670W/HZR1-DS01 | GCHV-E785W/HZR1-DS01 | GCHV-E900W/HZR1-DS01 |
|---|---|---|---|---|---|---|---|
| Cooling capacity | 25.2 kW | 33.5 kW | 45 kW | 56 kW | 67 kW | 78.5 kW | 90 kW |
| Heating capacity | 27.4 kW | 37.5 kW | 50 kW | 63 kW | 75 kW | 87.5 kW | 100 kW |
| EER (W/W) | 4.75 | 4.01 | 3.87 | 3.82 | 4.01 | 3.92 | 3.63 |
| COP (W/W) | 5.50 | 5.10 | 4.60 | 4.45 | 5.10 | 4.73 | 4.11 |
| Sound level (dB(A)) | 58 | 60 | 61 | 63 | 62 | 63 | 64 |
| Rated cooling current (A) | 9.04 | 14.51 | 21.6 | 26.1 | 29.09 | 36.13 | 44.73 |
| Power supply | 380–415 V / 3N~ / 50 Hz (60 Hz version available) | 380–415 V / 3N~ / 50 Hz (60 Hz version available) | 380–415 V / 3N~ / 50 Hz (60 Hz version available) | 380–415 V / 3N~ / 50 Hz (60 Hz version available) | 380–415 V / 3N~ / 50 Hz (60 Hz version available) | 380–415 V / 3N~ / 50 Hz (60 Hz version available) | 380–415 V / 3N~ / 50 Hz (60 Hz version available) |
| Cooling power input | 5.31 kW | ≈8.35 kW | ≈11.63 kW | 14.66 kW | ≈16.71 kW | ≈20.03 kW | ≈24.79 kW |
| Compressor | Hitachi DC inverter scroll | Hitachi DC inverter scroll | Hitachi DC inverter scroll | Hitachi DC inverter scroll | Hitachi DC inverter scroll | Hitachi DC inverter scroll | Hitachi DC inverter scroll |
| Air flow | 11,000 m³/h | 12,000 m³/h | 14,000 m³/h | 16,000 m³/h | 25,000 m³/h | 25,000 m³/h | 24,000 m³/h |
| Refrigerant / charge | R410A / 9 kg | R410A / 11 kg | R410A / 14 kg | R410A / 16 kg | R410A / 16 kg | R410A / 20 kg | R410A / 23 kg |
| Dimensions (W×H×D) | 990×1740×840 mm | 990×1740×840 mm | 1340×1740×840 mm | 1340×1740×840 mm | 1990×1740×840 mm | 1990×1740×840 mm | 1990×1740×840 mm |
| Net / gross weight | 228 / 240 kg | 230 kg (net) | 275 kg (net) | 290 / 308 kg | 388 kg (net) | 433 kg (net) | 480 kg (net) |
| Liquid / gas pipe | Ø12.7 / Ø22.2 mm | Ø12.7 / Ø22.2 mm | Ø15.88 / Ø28.6 mm | Ø15.88 / Ø28.6 mm | Ø15.88 / Ø28.6 mm | Ø22.2 / Ø35 mm | Ø22.2 / Ø35 mm |
Specifications verified: July 2026 — factory datasheets.
Other capacities in the 25.2–90 kW range, T3 versions and 60 Hz variants are available — send us your project load schedule for a full selection.
Applications
Shopping malls, hotels, apartments, hospitals, stations, airports, office buildings and villa projects. The wide 25.2–90 kW module range lets one system family serve everything from a villa to a hospital wing.
Product Gallery
Packing & Delivery
Units are packed in cartons with wooden case or crate reinforcement engineered for sea freight and transshipment handling. Accessories, controllers and spare parts are consolidated into the same delivery, so your installer has everything on day one.
FAQ — GCHV VRF System
Do you have T3 versions for 50 °C+ ambient?
Yes. The GCHV series uses T1 and T3 condition compressors; the T3 version maintains cooling output in high-ambient Gulf conditions and is certified for Saudi Arabia (SASO), UAE (ESMA) and Kuwait (MEW).
Which indoor units can be connected?

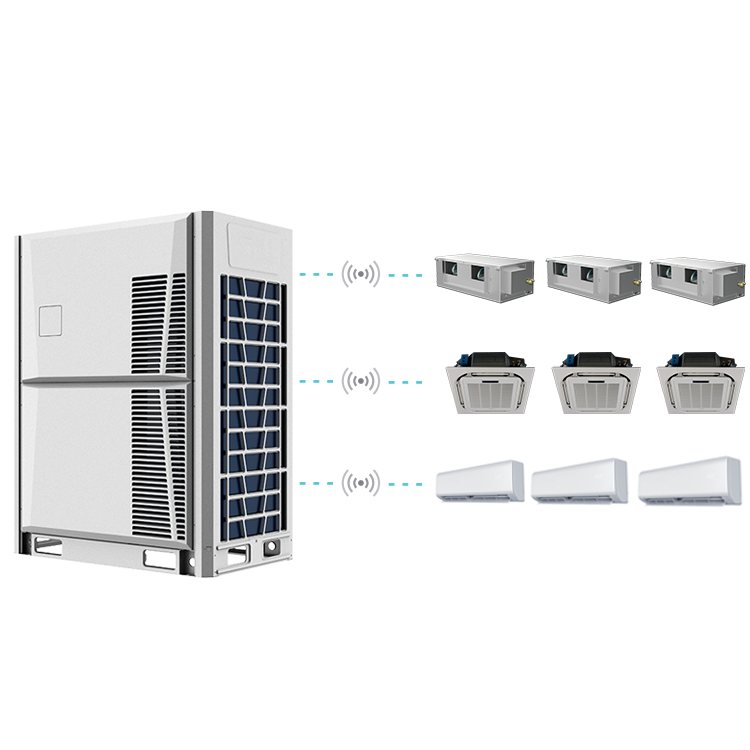

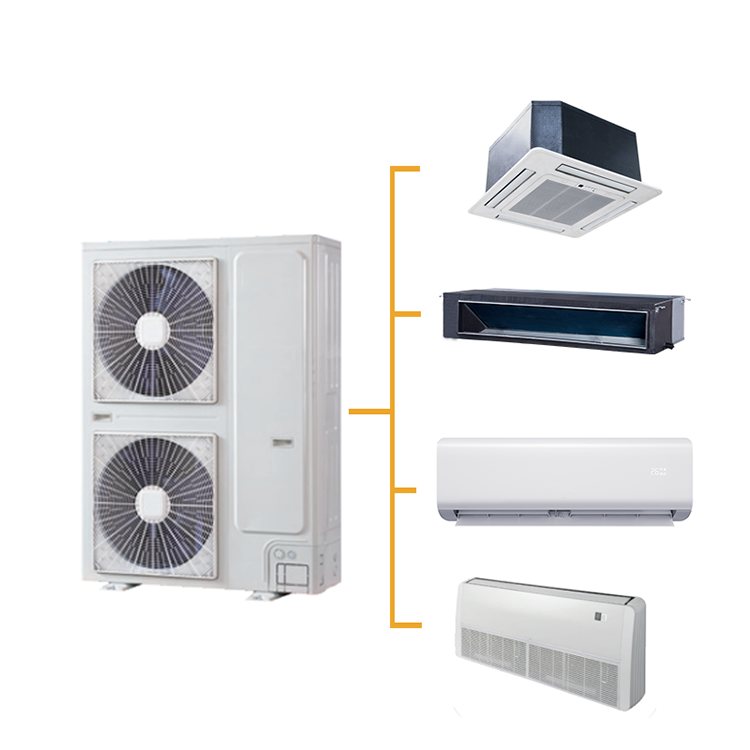

4-way cassettes, concealed duct units (low/medium/high static), wall-mounted and floor-ceiling units — mixed freely on one system within the connection ratio.
Can you support system design?
Yes. Send us your floor plans and we will produce the VRF selection, piping diagram and electrical schedule free of charge.
What is the maximum piping length of the GCHV VRF system?
Total system piping can reach 1,000 m. The actual pipe run to the farthest indoor unit can be up to 200 m (240 m equivalent length), with a height difference of up to 110 m between outdoor and indoor units and 40 m between indoor units, which covers most high-rise and campus layouts we quote.
What indoor-to-outdoor capacity ratio is allowed?
Connected indoor capacity can range from 50% to 130% of the outdoor module rating, so selections can reflect real usage diversity in hotels and offices. The system is designed for a maximum operating pressure of 4.5 MPa on R410A, and outdoor modules from 25.2 kW to 90 kW combine to match larger loads.
