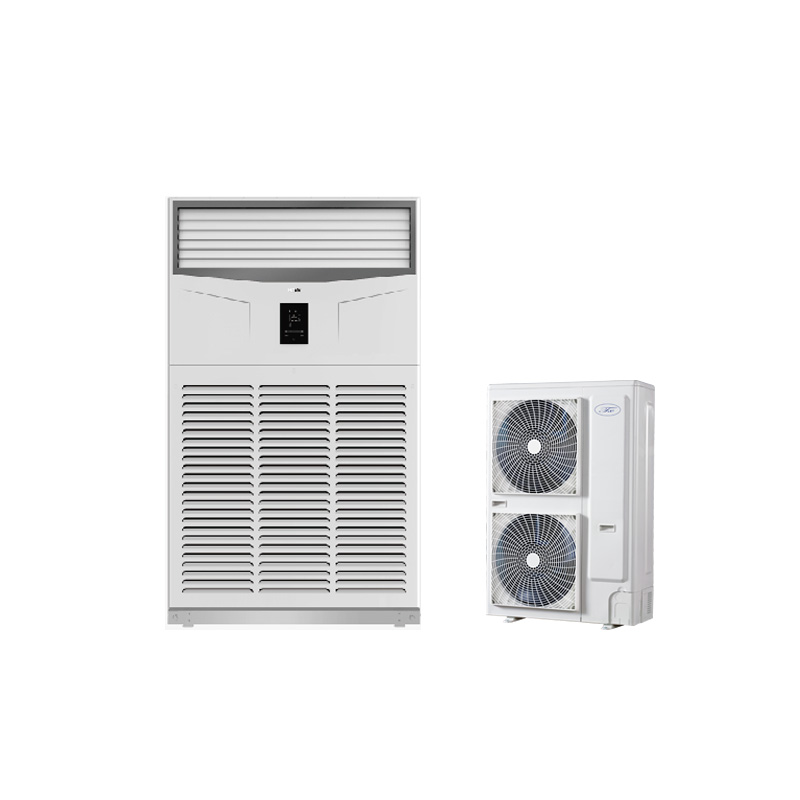

Plug-and-cool power for big open rooms — no ceiling works, no ducting, just position and run.
- 53K / 70K / 96K / 120K BTU capacities
- Centrifugal fan — strong airflow, long throw distance
- 3D air distribution for even comfort in large rooms
- 380–415 V / 3N / 50 Hz · inverter and fixed-speed versions
- Slim cabinet, metal fan blade, rapid cooling and heating
Certified: SASO · ESMA · MEW · EUROVENT · SGS · CE — view certificates
Overview
Floor standing cabinet units cool large open areas over 100 m² (1,076 sq ft) — supermarkets, conference rooms, showrooms, wedding halls and open offices — without any ceiling work. The compact slim body saves installation space, and the strong cabinet material gives a long service life.
A centrifugal fan pushes strong, long-distance airflow with 3D distribution that reaches every corner; both inverter and non-inverter versions are available.
The 96K twin-circuit model moves 4,000 m³/h of indoor air and covers 140–187 m². Fixed-speed floor-standing units cool at outdoor ambients from 18°C to 50°C; the T3 series is rated to 55°C.
Technical Specifications
| Model | COU-53HZR1 | COU-70HZR1 | COU-96HZR1 |
|---|---|---|---|
| Cooling capacity | 53,000 Btu/h | 70,000 Btu/h | 96,000 Btu/h (two systems) |
| Heating capacity (Btu/h) | 61,000 | 76,000 | 105,000 |
| EER (W/W) | 3.04 | 2.95 | 2.62 |
| COP (W/W) | 3.43 | 3.25 | 3.0 |
| Indoor airflow, high speed (m³/h) | 2,200 | 2,500 | 4,000 |
| Indoor noise (dB(A)) | 40–48 | 40–52 | 45–55 |
| Outdoor noise (dB(A)) | 60 | ||
| Refrigerant charge (R410A, g) | 3,000 | 4,350 | 2×2,800–3,000 |
| Max pipe length / drop (m) | 30 / 20 | 30 / 20 | 50 / 20 |
| Application area (m²) | 55–95 | 100–133 | 140–187 |
| Indoor unit dimensions W×H×D (mm) | 742×1802×450 | 742×1802×450 | 1200×1850×380 |
| Indoor unit net weight (kg) | 82 | 96 | 130 |
| Power supply | 380–415 V / 3N / 50 Hz | ||
| System | Single | Single | Twin circuit |
| Versions | Heat pump (HZR) and cooling-only (CZR); 120K on request | ||
Specifications verified: July 2026 — factory datasheets
T3 / SASO 60 Hz Version
For Saudi Arabia and other Gulf markets, the floor standing range includes a 60 Hz T3 high-ambient line with SASO SEER ratings and Copeland scroll compressors.
| Model (IDU + ODU) | CFAT-48HNR1 + COWT-48HNR1 | CFAT-60HNR1 + COWT-60HNR1 |
|---|---|---|
| Cooling capacity T1 (Btu/h) | 46,000 | 52,000 |
| Cooling capacity T3 (Btu/h) | 40,000 | 45,000 |
| SASO SEER (Btu/(W·h)) | 10 | 10.1 |
| Annual energy consumption CSEC (kWh/y) | 16,194 | 17,703 |
| Heating COP (W/W) | 3.75 | 3.49 |
| Indoor airflow, high speed (m³/h) | 2,500 | 2,650 |
| Power supply (V/Ph/Hz) | 230 V / 1N / 60 Hz | |
For 50 Hz markets, the T3 fixed-speed cabinets CFAT-48HR1-A and CFAT-60HR1-A operate at outdoor ambients from -7°C to 55°C, with a 220–240 V / 1N / 50 Hz indoor unit power supply.
Applications
Supermarkets, conference rooms, office lobbies, stores, restaurants, banquet halls and prayer halls — any open area larger than 100 m².
Product Gallery
Packing & Delivery
Units are packed in cartons with wooden case or crate reinforcement engineered for sea freight and transshipment handling. Accessories, controllers and spare parts are consolidated into the same delivery, so your installer has everything on day one.
FAQ — Floor Standing AC
How far can the airflow reach?
The centrifugal fan delivers a long throw suitable for deep rooms; the 96K twin-circuit model covers very large halls when positioned at the room ends.
What area can each floor standing size cover?
The 53K Btu/h cabinet is sized for 55–95 m², the 70K model for 100–133 m², and the 96K twin-circuit unit for 140–187 m². These figures come from factory datasheets and assume typical ceiling heights and heat loads; rooms with large glass frontage or high occupancy may need the next size up, so share your floor plan for a matched selection.
Is there a SASO-certified version for Saudi Arabia?
Yes. The 60 Hz T3 line — CFAT-48HNR1 and CFAT-60HNR1 — is built for the Saudi market with SASO SEER ratings of 10 and 10.1 Btu/(W·h) and rated annual energy consumption (CSEC) of 16,194 and 17,703 kWh per year respectively. Both models run on 230 V / 1N / 60 Hz power and use Copeland scroll compressors.
What pipe length is supported between indoor and outdoor units?
The 53K and 70K single-circuit models support a maximum pipe length of 30 m with a 20 m height difference between indoor and outdoor units. The 96K twin-circuit cabinet extends this to 50 m with the same 20 m drop, which allows the outdoor units to sit on a roof several floors above the conditioned hall.
