Build exactly the chiller plant you need — module by module, no cooling tower required.
- 30 / 65 / 130 kW modules — free combination up to 32 units (16 for the 130 kW module)
- Cooling EER up to 3.26 · SEER up to 3.95 · heat pump COP up to 3.57
- R410A refrigerant, hermetic scroll compressors
- 380–415 V / 3N / 50 Hz (60 Hz on request)
- Even run-time distribution across modules
Certified: SASO · ESMA · MEW · EUROVENT · SGS · CE — view certificates
Overview
The CLS-F series modular air-cooled scroll chiller distributes running time evenly across modules to increase service life, uses R410A refrigerant, and connects up to 32 units in parallel (16 for the 130 kW module, up to 2,080 kW system capacity) — so the plant grows with your building. High-efficiency heat exchangers greatly reduce energy loss.
Because no cooling tower or condenser water loop is needed, these chillers suit water-scarce regions and retrofit projects where plant space is tight.
Technical Specifications
| Model | CLS-F30HW/ZR1B | CLS-F65HW/ZR1B | CLS-F130HW/ZR1B |
|---|---|---|---|
| Cooling capacity | 30 kW | 65 kW | 130 kW |
| Heating capacity | 35 kW | 70 kW | 132 kW |
| Power supply | 380–415 V / 3N / 50 Hz | ||
| Cooling power input | 9.4 kW | 20.6 kW | 39.8 kW |
| EER / SEER | 3.18 / 3.81 | 3.16 / 3.86 | 3.26 / 3.95 |
| Heating COP / SCOP | 3.57 / 3.64 | 3.28 / 3.51 | 3.23 / 3.48 |
| Refrigerant charge (R410A) | 7.3 kg | 13.5 kg | 30 kg |
| Compressor | Copeland scroll ×1 | Copeland scroll ×2 | Copeland scroll ×4 |
| Air flow (m³/h) | 12,000 | 24,000 | 48,000 |
| Water flow (m³/h) | 5.16 | 11.18 | 22.36 |
| Water pressure drop (kPa) | 30 | 30 | 40 |
| Water connection | DN40 | DN65 flange | DN65 flange |
| Sound level (dB(A)) | 62 | 64 | 65 |
| Ambient range — cooling (°C) | 15 ~ 48 | -15 ~ 48 | 15 ~ 48 |
| Ambient range — heating (°C) | -15 ~ 30 | ||
| Outlet water (°C) | Cooling 5–17 · Heating 30–50 | ||
| Dimensions W×H×D (mm) | 1160×1920×900 | 2000×1920×900 | 2200×2220×1100 |
| Net weight (kg) | 320 | 610 | 1,010 |
Specifications verified: July 2026 — factory datasheets
Cooling-Only Version
| Model | CLS-F30CW/ZR1 | CLS-F65CW/ZR1 | CLS-F130CW/ZR1 |
|---|---|---|---|
| Cooling capacity (kW) | 33.15 | 65 | 130 |
| EER (W/W) | 3.26 | 3.38 | 3.38 |
| Sound level (dB(A)) | 62 | 64 | 65 |
| Power supply (V/Ph/Hz) | 380–415 / 3N / 50 | ||
The CW/ZR1 cooling-only modules reach an EER of 3.38 and combine up to 16 × 130 kW units on one water loop — 2,080 kW of cooling for hot-climate projects where heating is not required.
Applications
Hotels, restaurants, supermarkets, shopping malls, office buildings, theatres and factories — especially sites with high noise requirements, water shortage, or nowhere to install cooling towers.

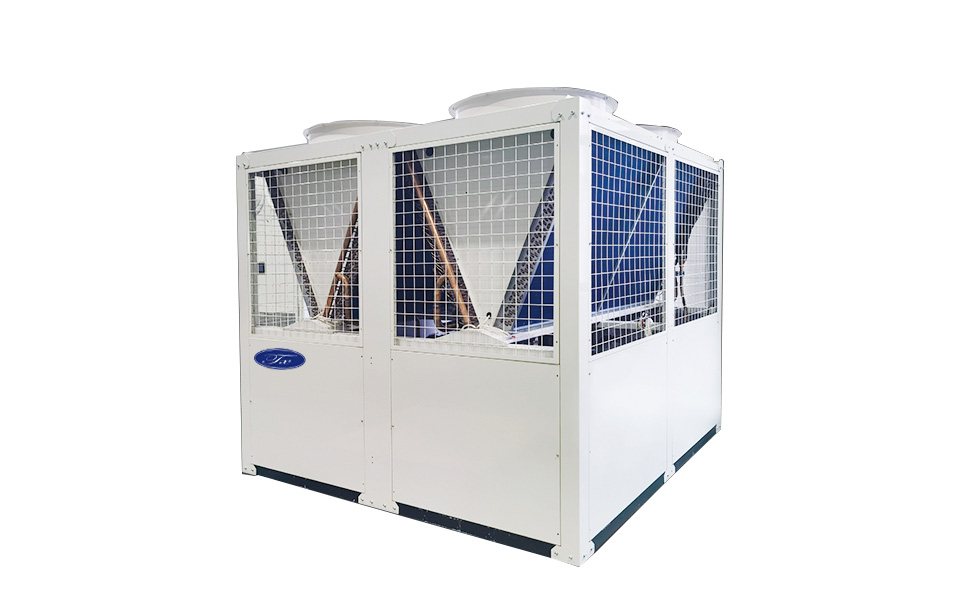

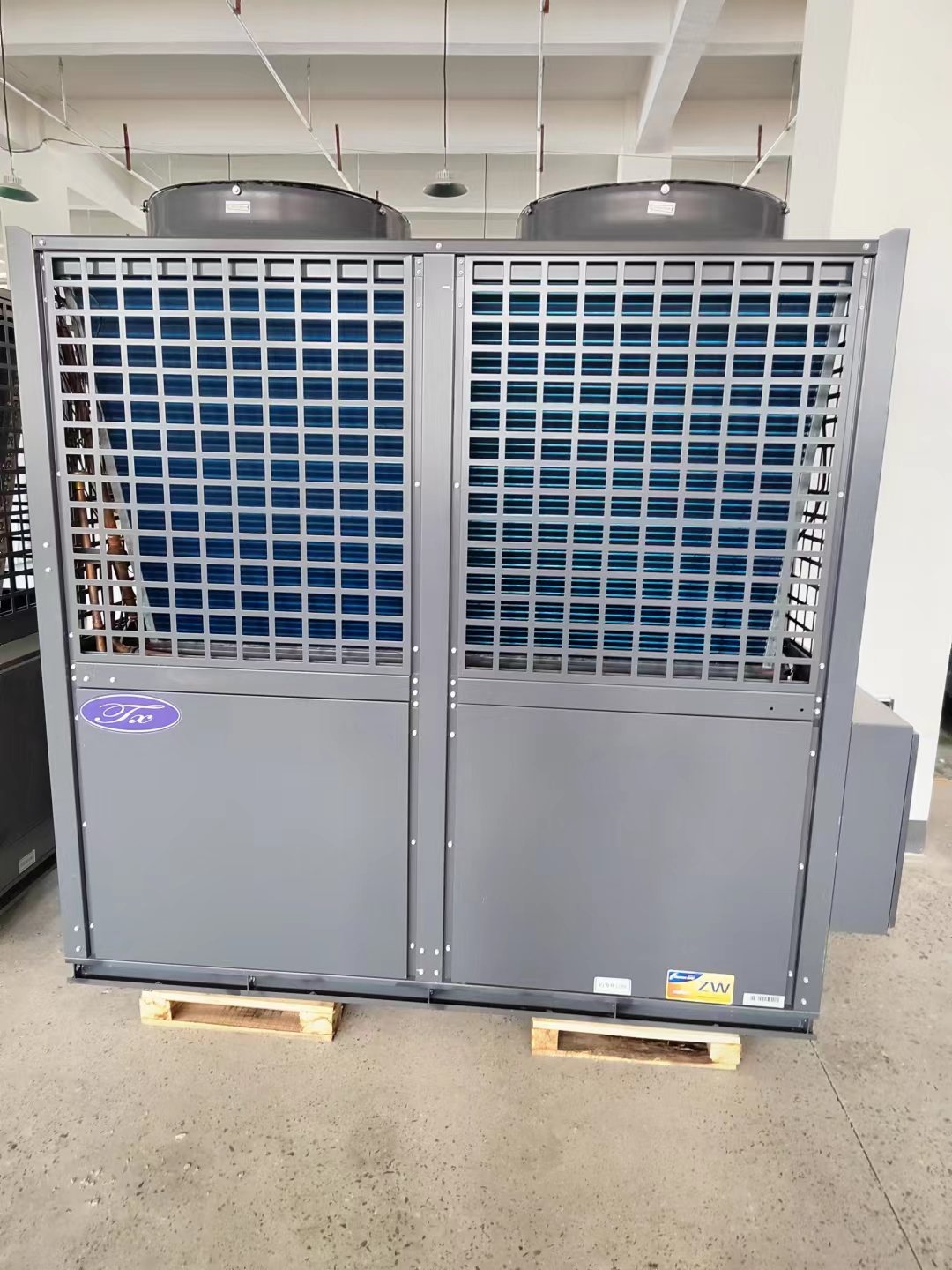

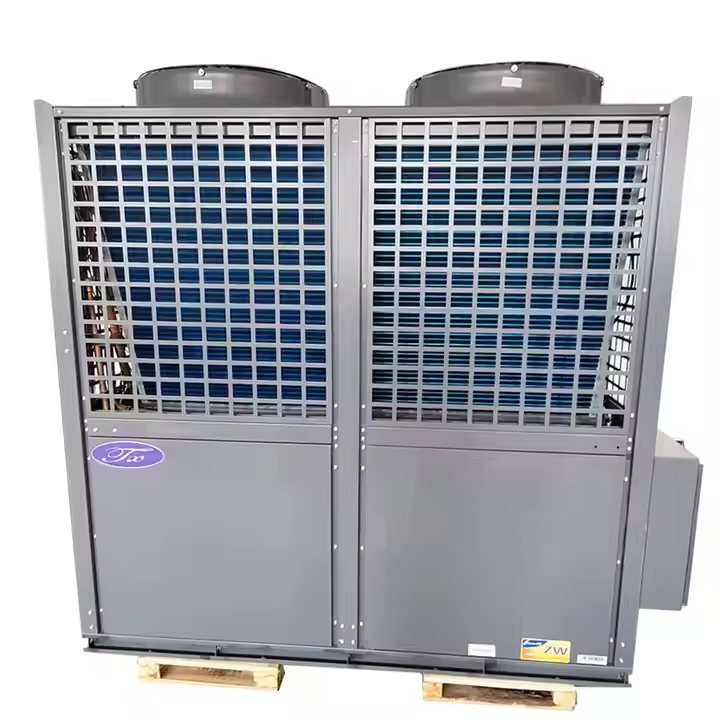

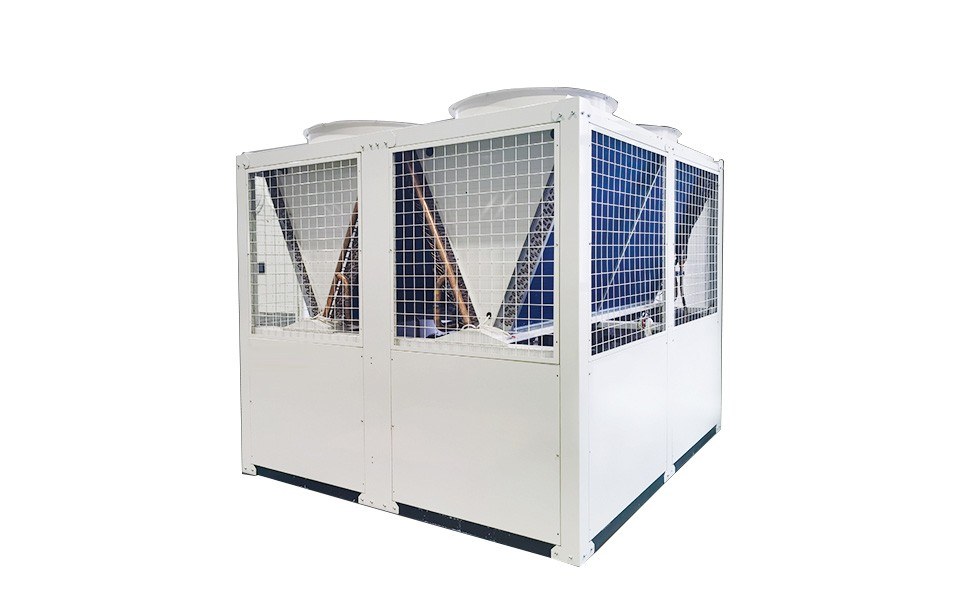

Product Gallery
Packing & Delivery
Units are packed in cartons with wooden case or crate reinforcement engineered for sea freight and transshipment handling. Accessories, controllers and spare parts are consolidated into the same delivery, so your installer has everything on day one.
FAQ — Modular Scroll Chiller
How many modules can be combined?
Up to 32 modules (30/65 kW) or 16 modules (130 kW) connect in parallel on one water loop with rotating lead-lag control, reaching 2,080 kW system capacity.
Do you provide heat pump versions?
Yes — the HW models provide both chilled water in summer and 45–50 °C hot water in winter from the same unit.
Can the chillers run at 60 Hz?
60 Hz versions for Saudi Arabia and other 60 Hz grids are available; specify your power supply when requesting a quote.
What is the ambient operating range?
Heat-pump modules cool at ambient temperatures up to 48 °C, and the 65 kW module keeps cooling down to -15 °C. Heating mode runs from -15 °C to 30 °C ambient with 30–50 °C outlet water. For colder climates, the EVI low-temperature series extends heating operation down to -30 °C ambient.
What are the water-side requirements?
Each 65 kW module needs a water flow of 11.18 m³/h and each 130 kW module 22.36 m³/h, both with DN65 flange connections; the 30 kW module uses DN40 at 5.16 m³/h. Water pressure drop through the heat exchanger is 30–40 kPa depending on module size.
